Download a PDF version of the New Holland MAD Concaves Configuration Guide.

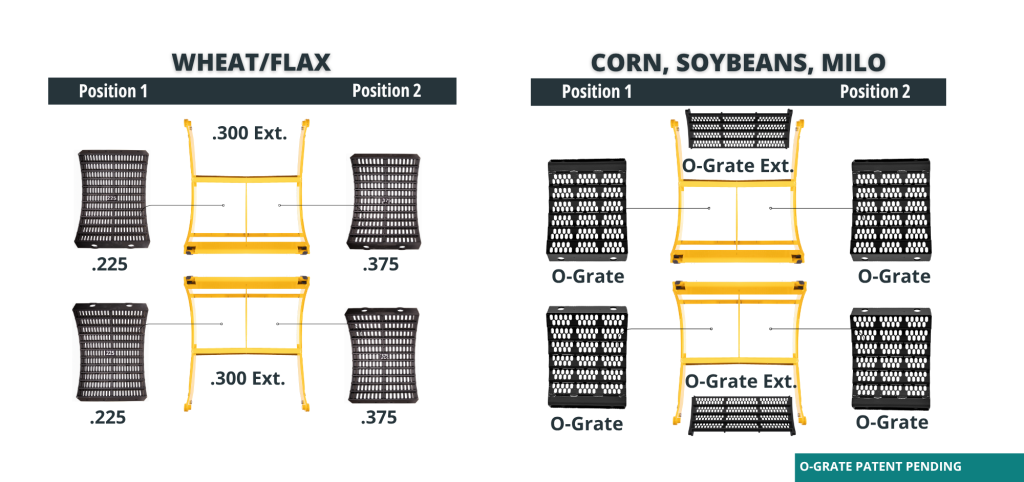

Standard New Holland MAD Concaves Set Up

Quick Tips & Additional Settings Information

  1. For hard thresh wheat, the extension is in a locked in position.
  2. For normal wheat conditions, keep the extension positioned out by removing the pins on each side and pulling the concave forward. Lock the concave back into this position.
  3. For uncured crops, use .375 in position one and Finger Grates in position two
